Step-by-step instructions to easily install your INOVATIV Pro Monitor Mount.

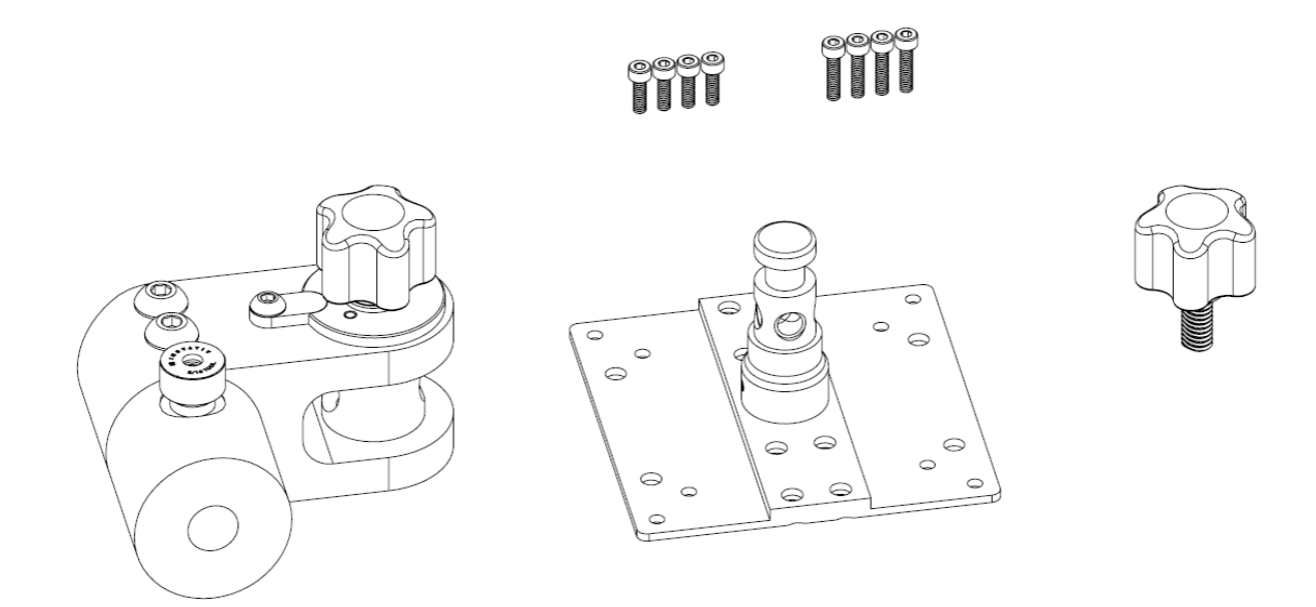

Box Contents:
| (1) Pro Mount Assembly | (4) M4x0.7 x 12mm Screws |
| (1) VESA Plate Assembly | (4) M4x0.7 x 16mm Screws |
| (1) VESA Plate Knob | (1) 3/16 Allen Key |
| (1) Rosette Knob | (1) 3mm Allen Key |
Attach VESA Plate

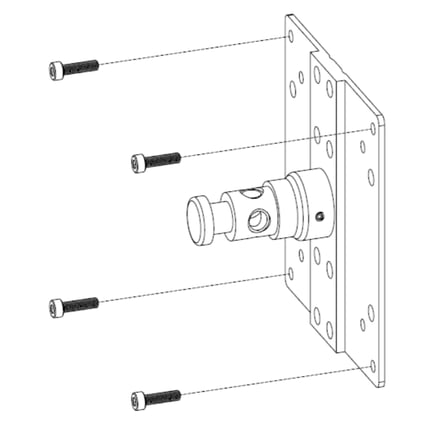

Attach VESA Plate Assembly to monitor using the 3mm Allen Key and M4 Screws provided.
Baby Pin Mounting

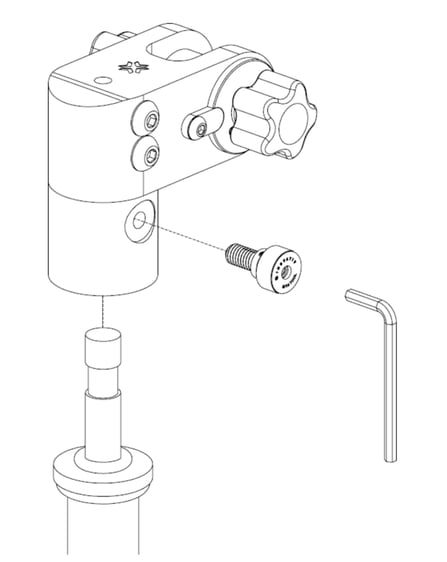

Attach Pro Mount Assembly to your baby pin using the Thumbscrew. Tighten down using your fingers or with the 3/16mm Allen Key provided.
Thumbscrew Configurations
Free Rotate
The monitor can freely rotate 360 degrees without falling out of the mount.
Quadrant Lock

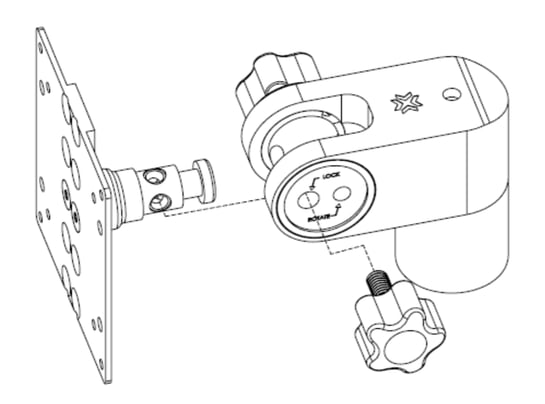

The VESA Plate Knob can thread into the VESA Pin in two positions, to lock the monitor in a horizontal or vertical position.
⚠︎ Caution ⚠︎

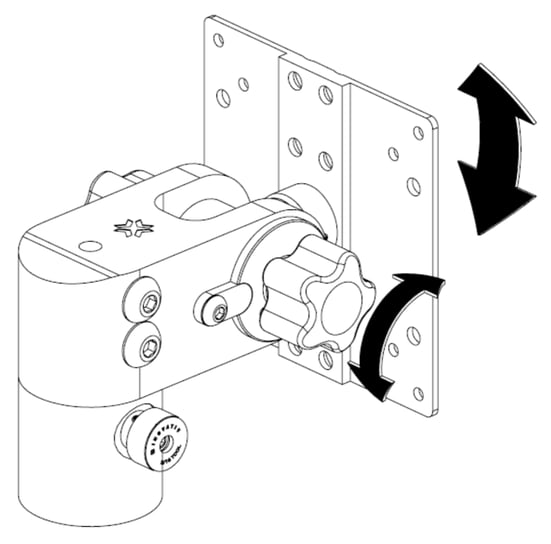

Loosen the Rosette knob to allow the VESA + Monitor assembly to tilt up or down. Support the monitor before attempting to loosen the Rosette knob. The monitor may fall when the internal rosette locking feature is disengaged.
