Quick Start Guide for QR Monitor Mount System

Step-by-step instructions to easily install your INOVATIV QR Monitor Mount System.

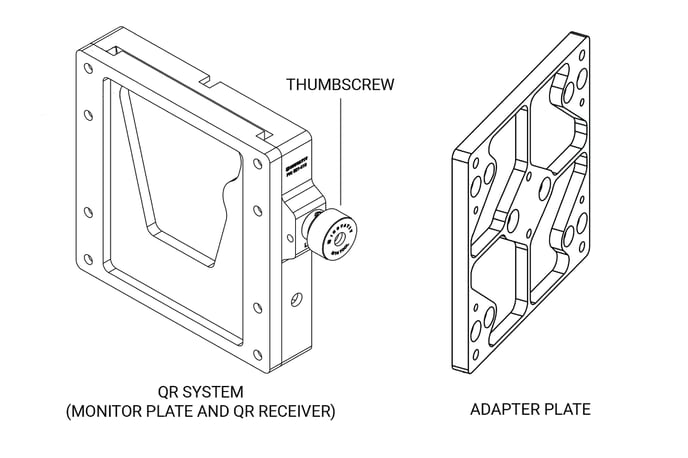

Box Contents:

Attach Monitor Plate

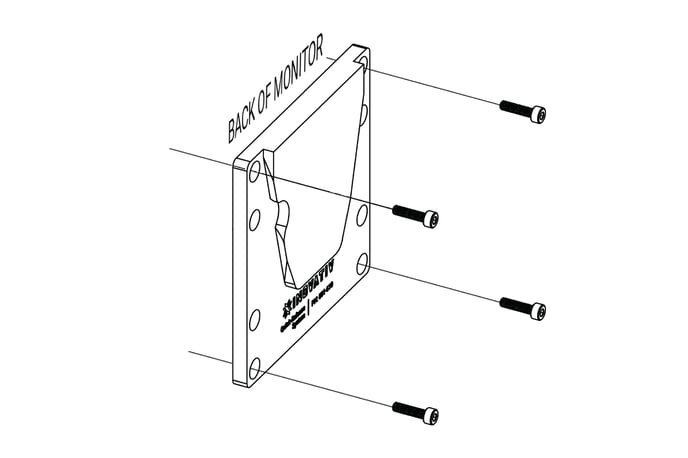

Loosen Thumbscrew and separate Monitor Plate from QR Receiver by pulling up. Connect the Monitor Plate to the back of your monitor using the 3mm Allen Key and M4 Screws provided.

Recessed Mounting

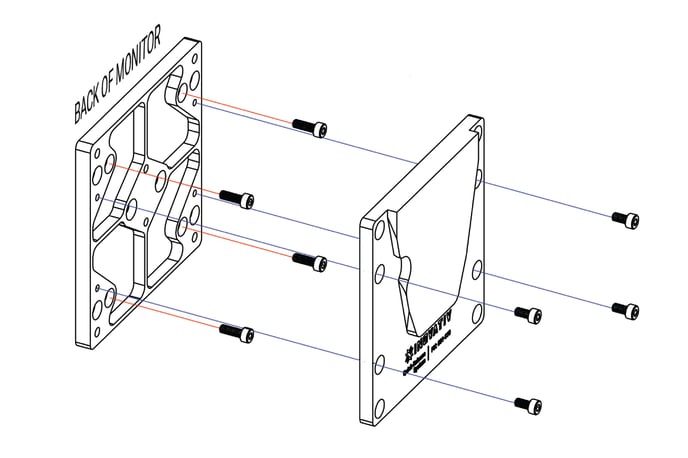

If your monitors VESA connection area is recessed, first place the Adapter Plate against the monitor, then place the Monitor Plate over top of it. Connect the plates to the monitor by passing 4 of the longer M4 screws through both plates, screwing directly into the monitor. Tighten each bolt with the provided 3mm Allen Key

75mm VESA Mounting

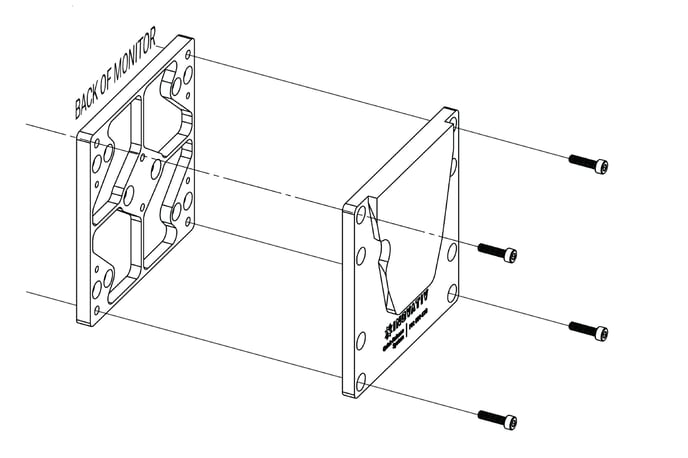

Using 4 M4 screws, mount the Adapter Plate to the back of your monitor. Then connect and tighten the Monitor Plate to the Adapter Plate using another set of M4 screws.

QR Receiver Mounting

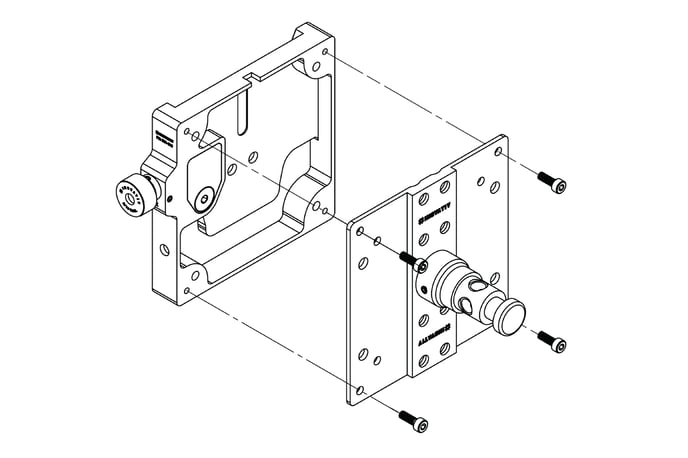

Connect the QR Receiver to your monitor mount's VESA Plate using 4 M4 screws.

QR System Connection

Connect the QR Receiver to your monitor mount's VESA Plate using 4 M4 screws.

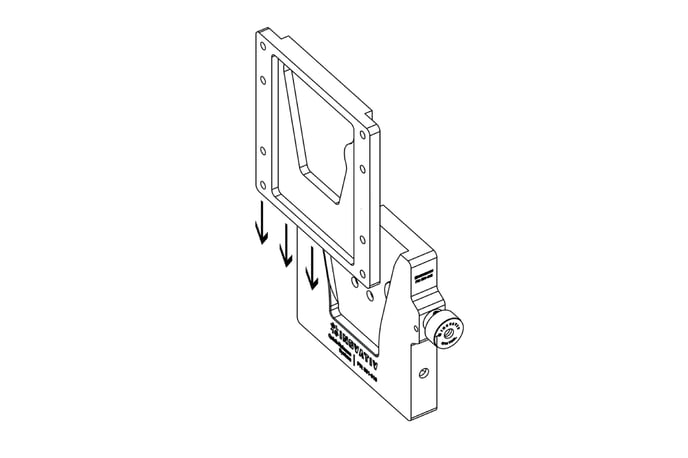

While holding your monitor, drive the Monitor Plate into the QR Receiver from the top – down. The Monitor Plate will positively engage with the QR Receiver and you should hear or feel an audible “click”. Tighten Thumbscrew to lock the parts together.

NOTE: DO NOT LET GO OF THE MONITOR, UNTIL ENGAGEMENT IS CONFIRMED
